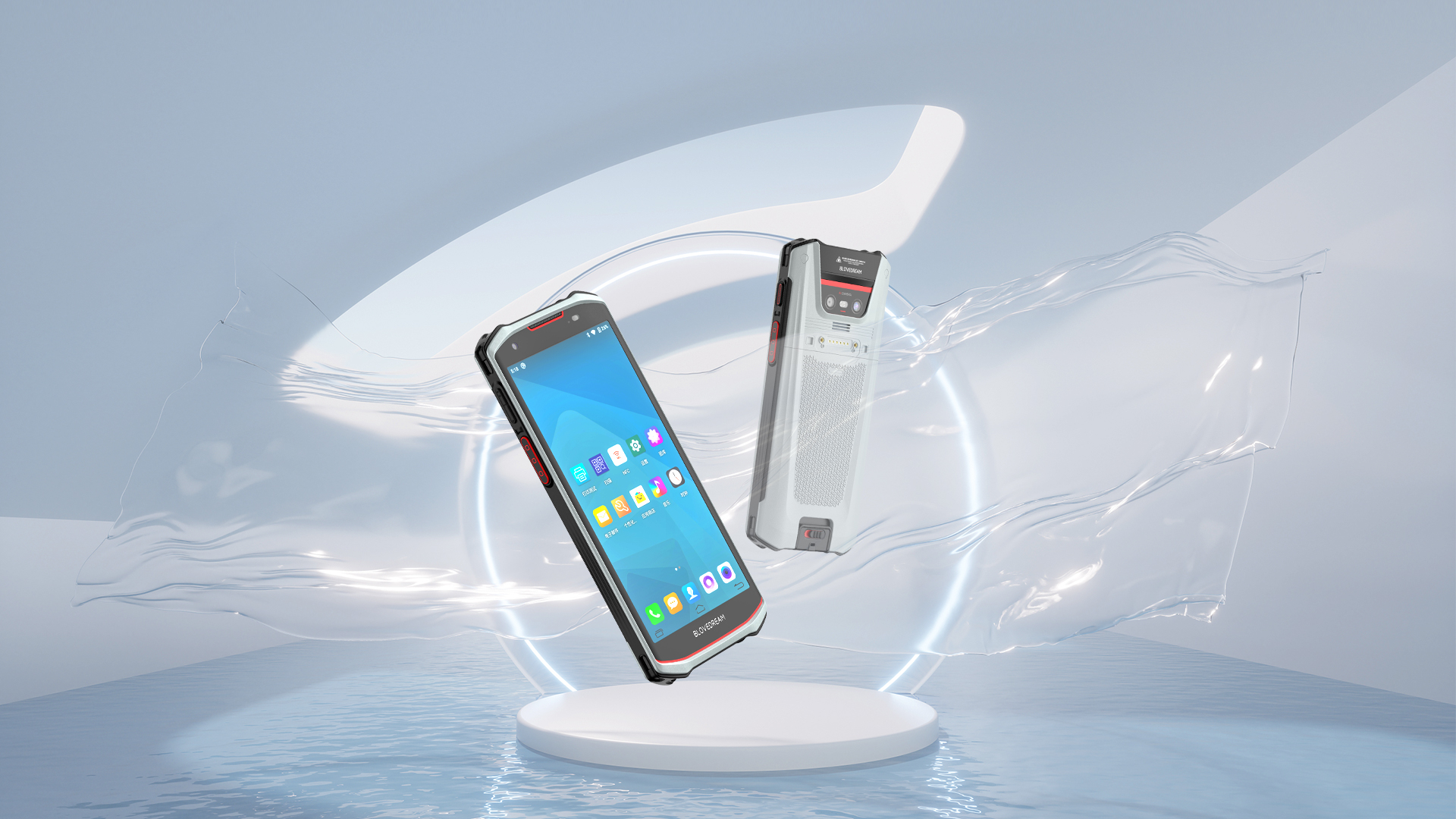

F502 full screen intelligent handheld terminal

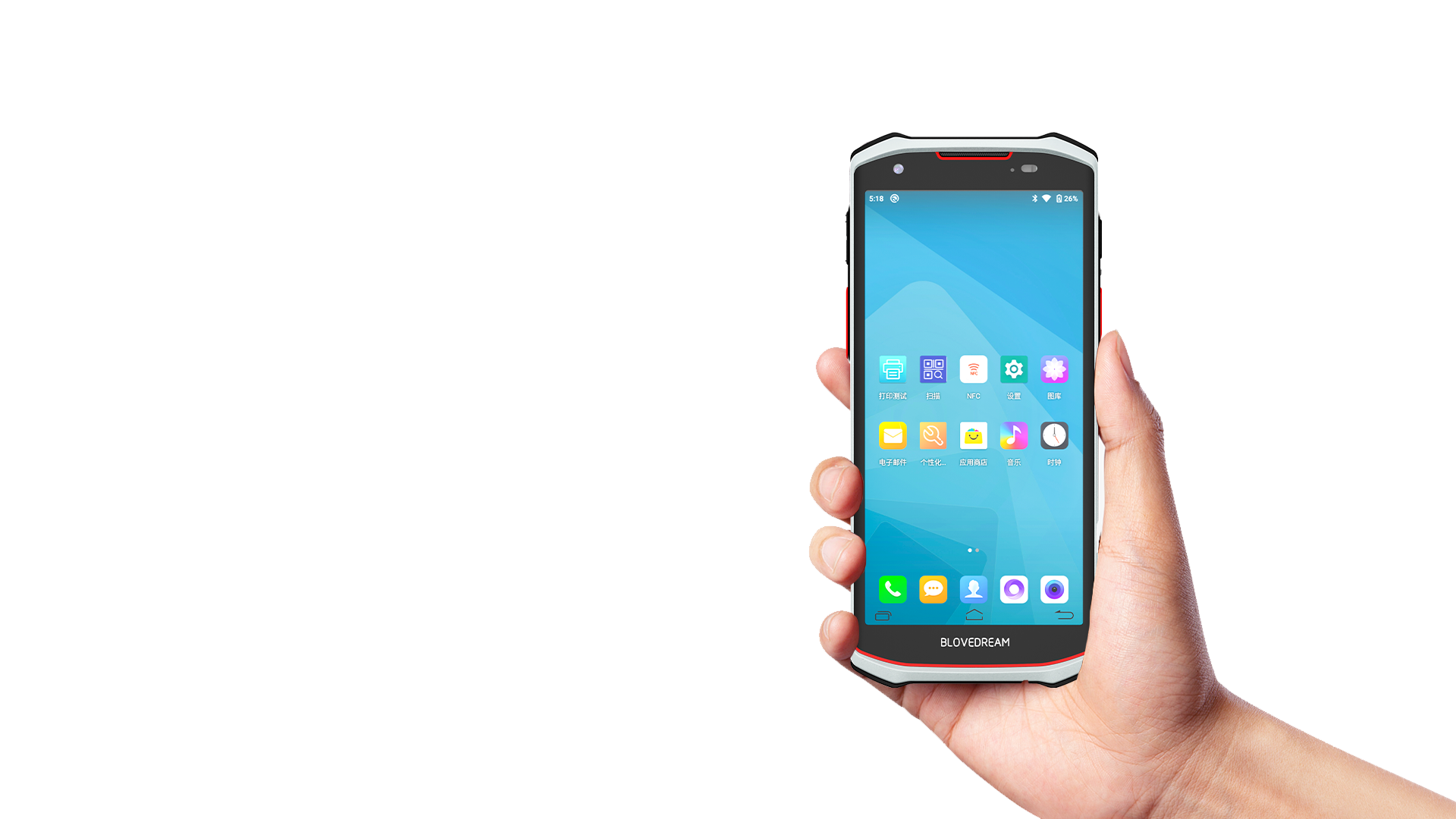

The device is lightweight and easy to hold with one hand

The F502 adopts the traditional 5.5-inch industrial grade full

screen design, with lighter and thinner sides. The overall weight

is less than 300g. The shell adopts a professional anti slip pattern

 design, and the back uses gray as the background color, which is

not only durable but also dirt resistant. The equipment conforms

to ergonomic design, making it easy to operate with one hand

Super strong

configuration Run faster


To use a higher performance eight core processor that supports the

Android 10.0 system, editing data, uploading data, and images run

smoothly without any lag during operation

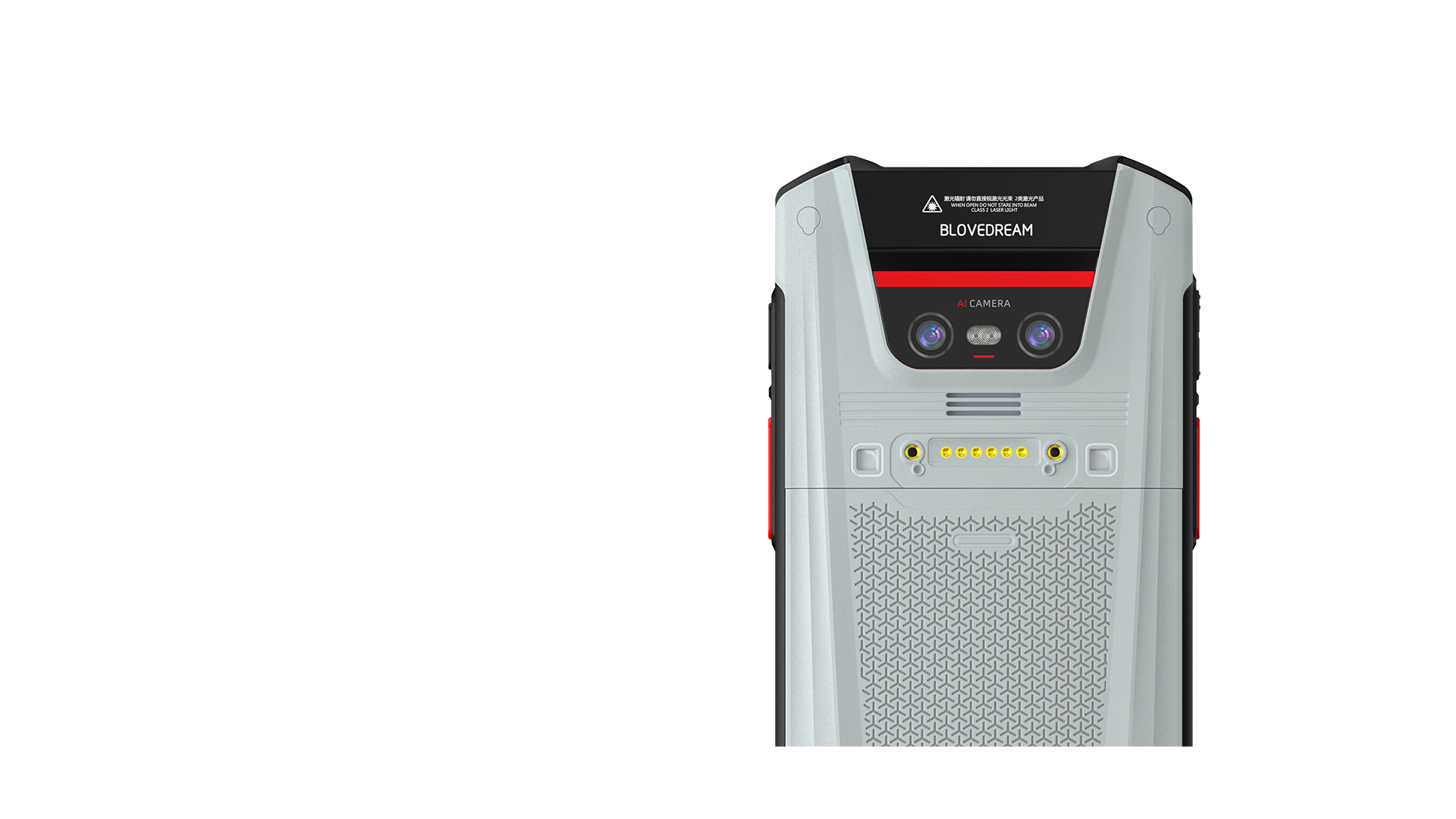

Front and rear dual camera

imaging with clearer image

quality

The F502 has optimized the camera, improving image

quality and clarity by 13 million pixels in the rear and

2 million pixels in the front (with optional 5 million pixels).

The image quality is visible and delicate to the naked

eye, meeting the photography needs of users.

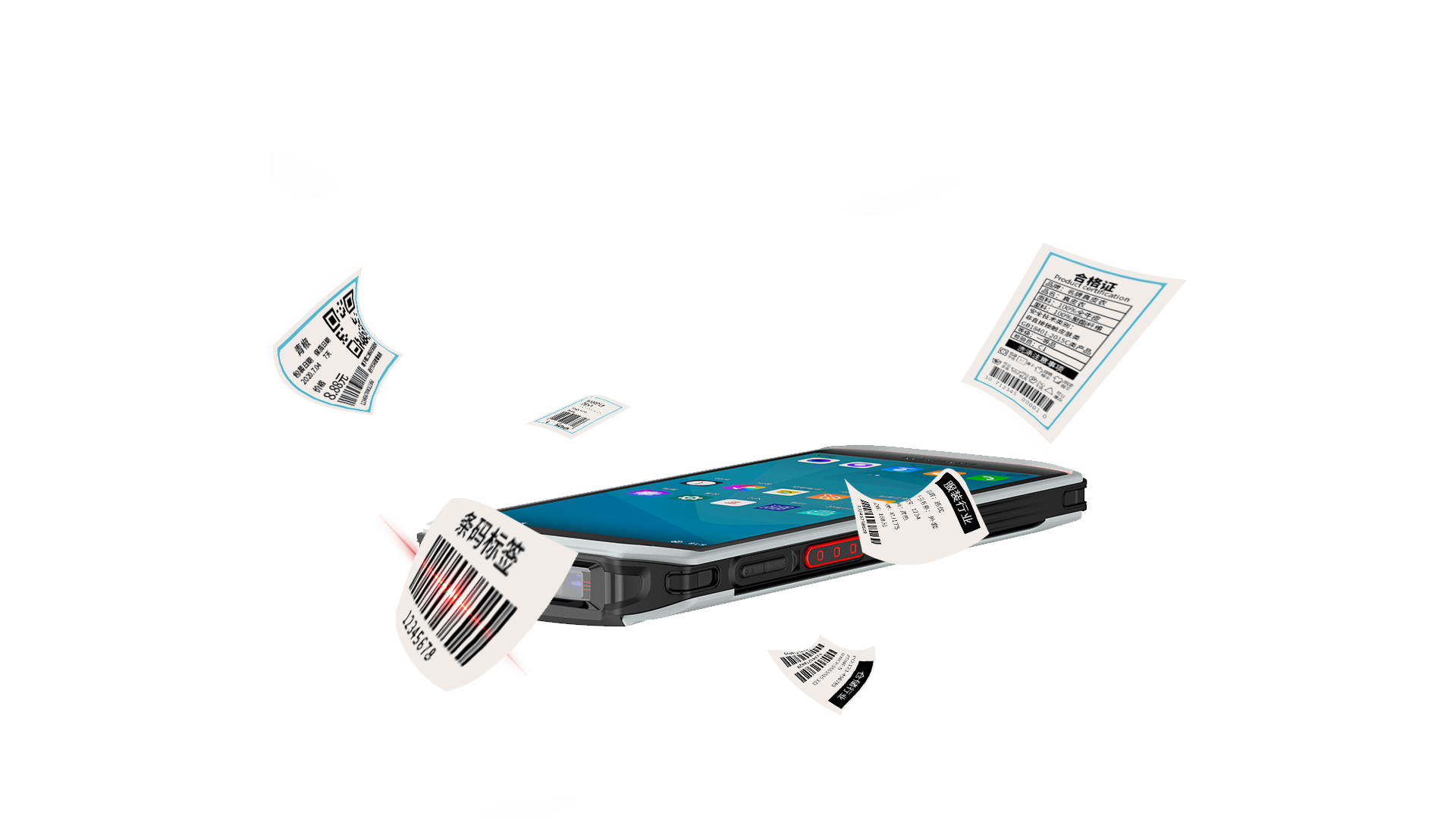

Accurate scanning and efficient collection

Supports scanning one-dimensional/two-dimensional barcodes, with exceptional scanning capabilities. Regardless of dirty or damaged barcodes, they can be accurately read, helping users efficiently complete collection work

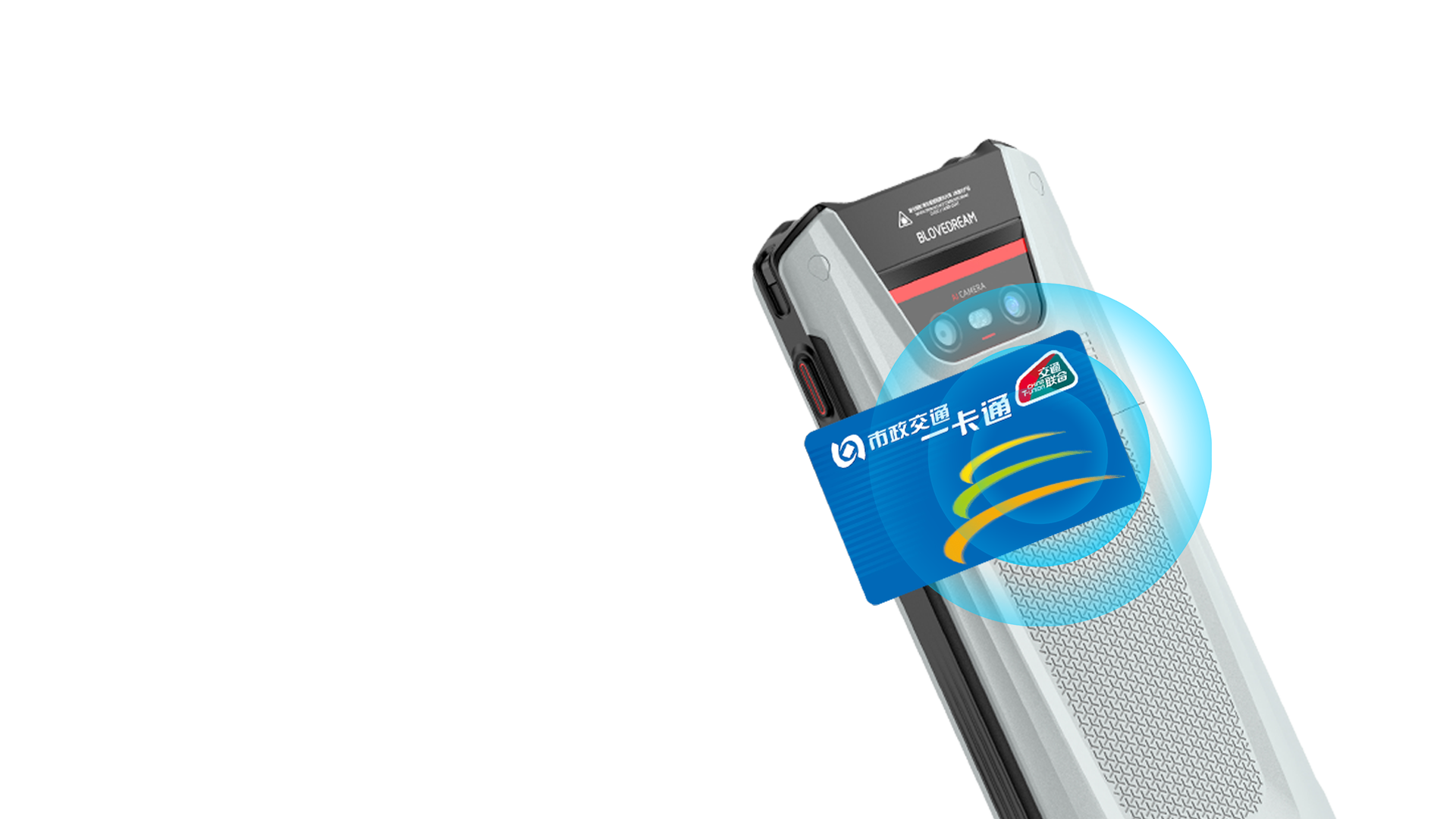

Support NFC Expand more

application scenarios


Users can configure NFC read and write functions, support protocols such as

ISO14443A/B15693, and facilitate the expansion of more application

scenarios, such as identity recognition and employee management

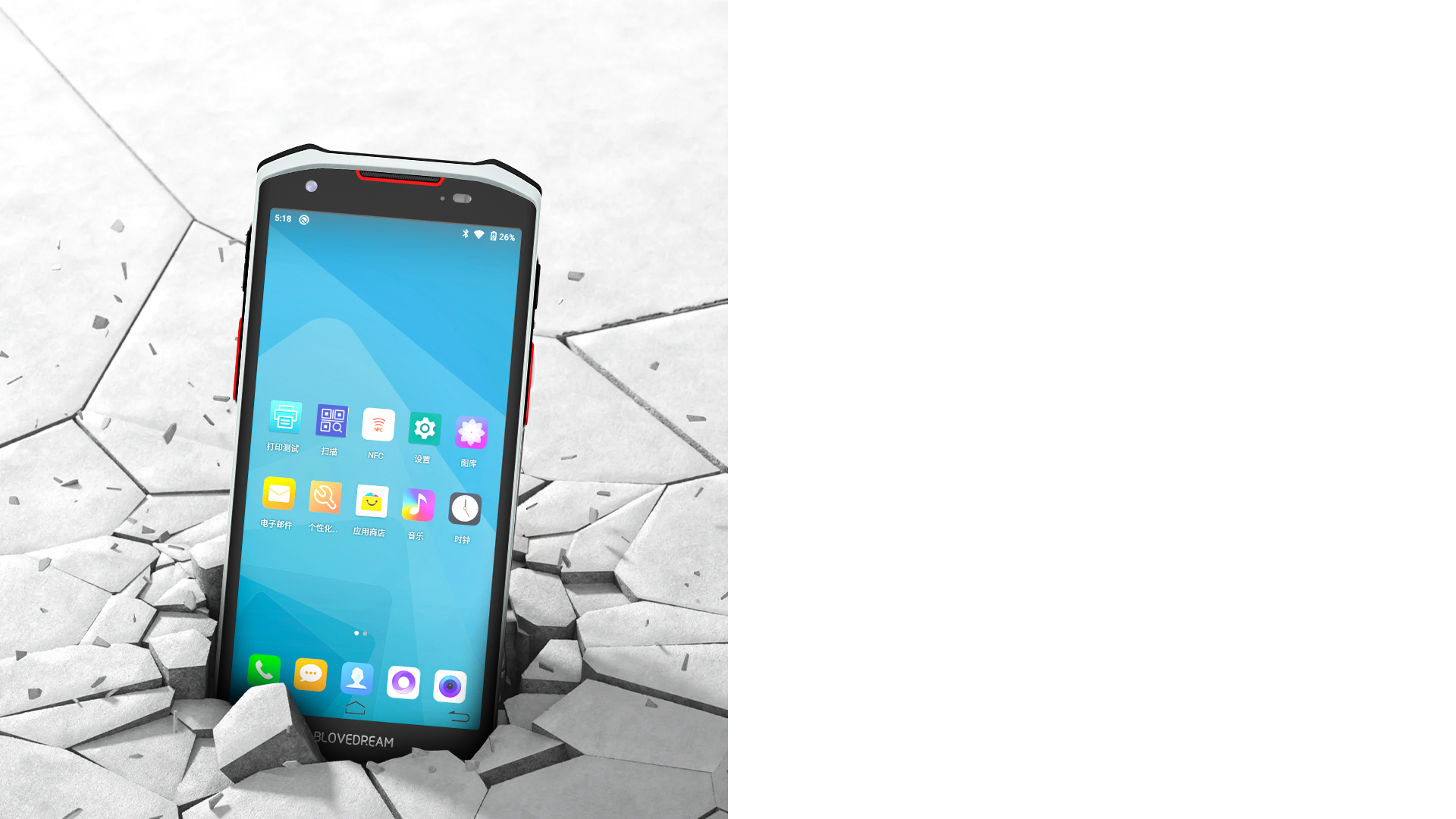

Professional protection

Body Classic Hundred "Battles"


Each device undergoes rigorous drop and roll testing, with strong

protective capabilities, to easily cope with the drop challenges

generated by the equipment during operation

F502 specifications
Download
Standard configuration
Operating system
Android 10.0
CPU
MT6762 Octa-core 64-bit
2.0GHz
RAM+ROM
2GB+16GB
(Optional 4GB+64GB)
Display screen
5.5" IPS,720x1440
Mobile Network
4G full network
WIFI
Dual-band 2.4GHz / 5GHz,
Support IEEE 802.11ac/a/b/g/n/d/e/h/i/j/k/r/vprotocol
Bluetooth
Bluetooth 5.0
Interface
Type-C USB x 1, OTG
Dimensions
160.5mm x 70.6mm x 14.9 mm
Keypad
Power key, Volume +/- key,Scan key × 2
Card slot
TF+NANO SIM/NANO SIM×2/NANO SIM
GNSS
Support GPS,Galileo, Glonass, Beidou
User Environment
Operating Temp: -20°C to55°C
Storage Temp: -40C to 70°C
Camera
Rear camera 13MP HD camera,Support auto focus, Flash, Anti-shake, Macro shooting
Front camera 2MP color camera,(5MP Optional)
Sealing
IP66
Battery
3.8V 4200mAh
Optional configuration
2D Scanner
Honeywell N6703 N6603 N5703 ,6602
NFC
13.56MHz, support ISO14443A/B 15693 agreement
