Blovedream

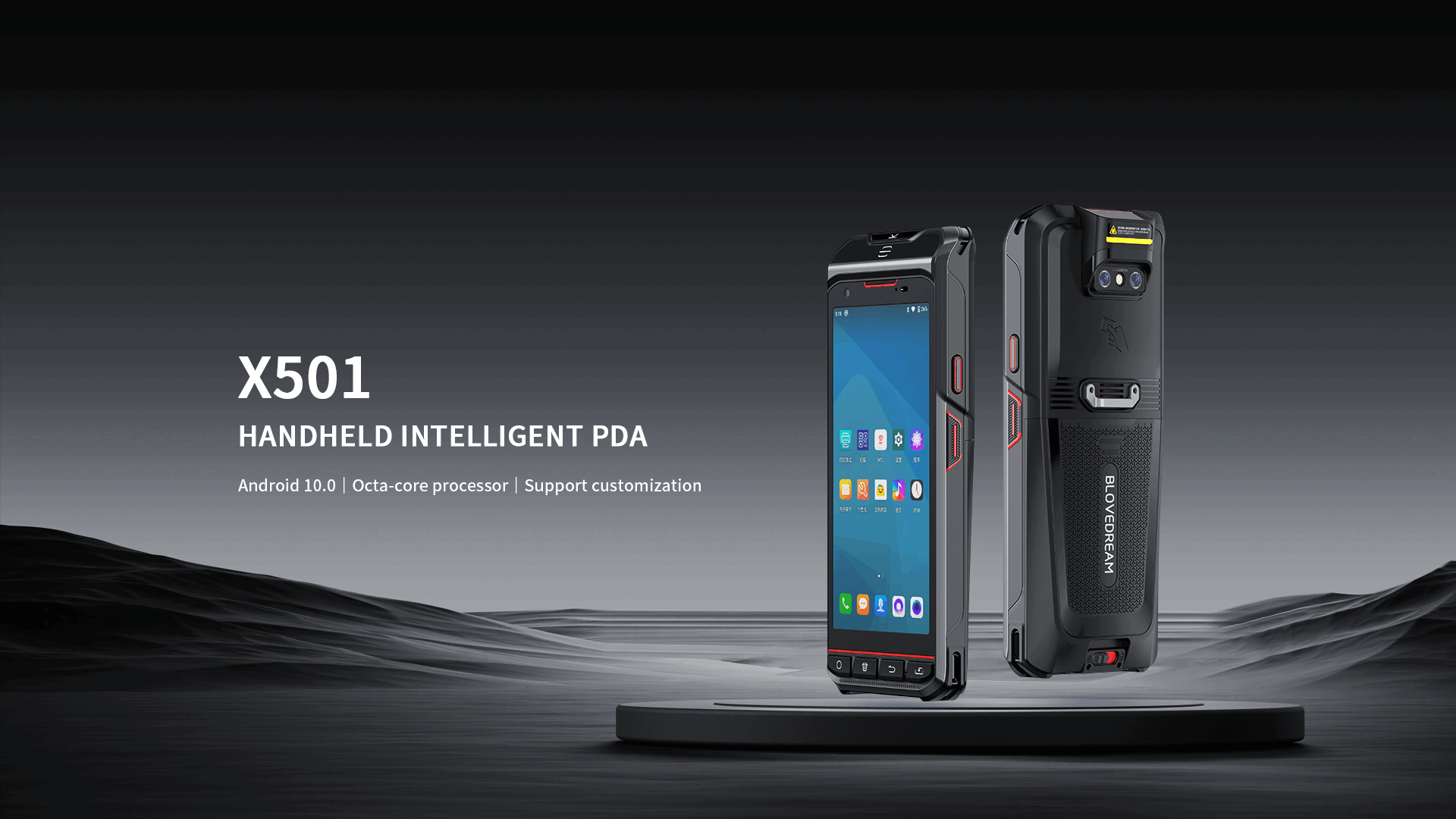

X501 Handheld Intelligent Terminal

Android 10.0 | 8-core processor | Support for multifunctional customization

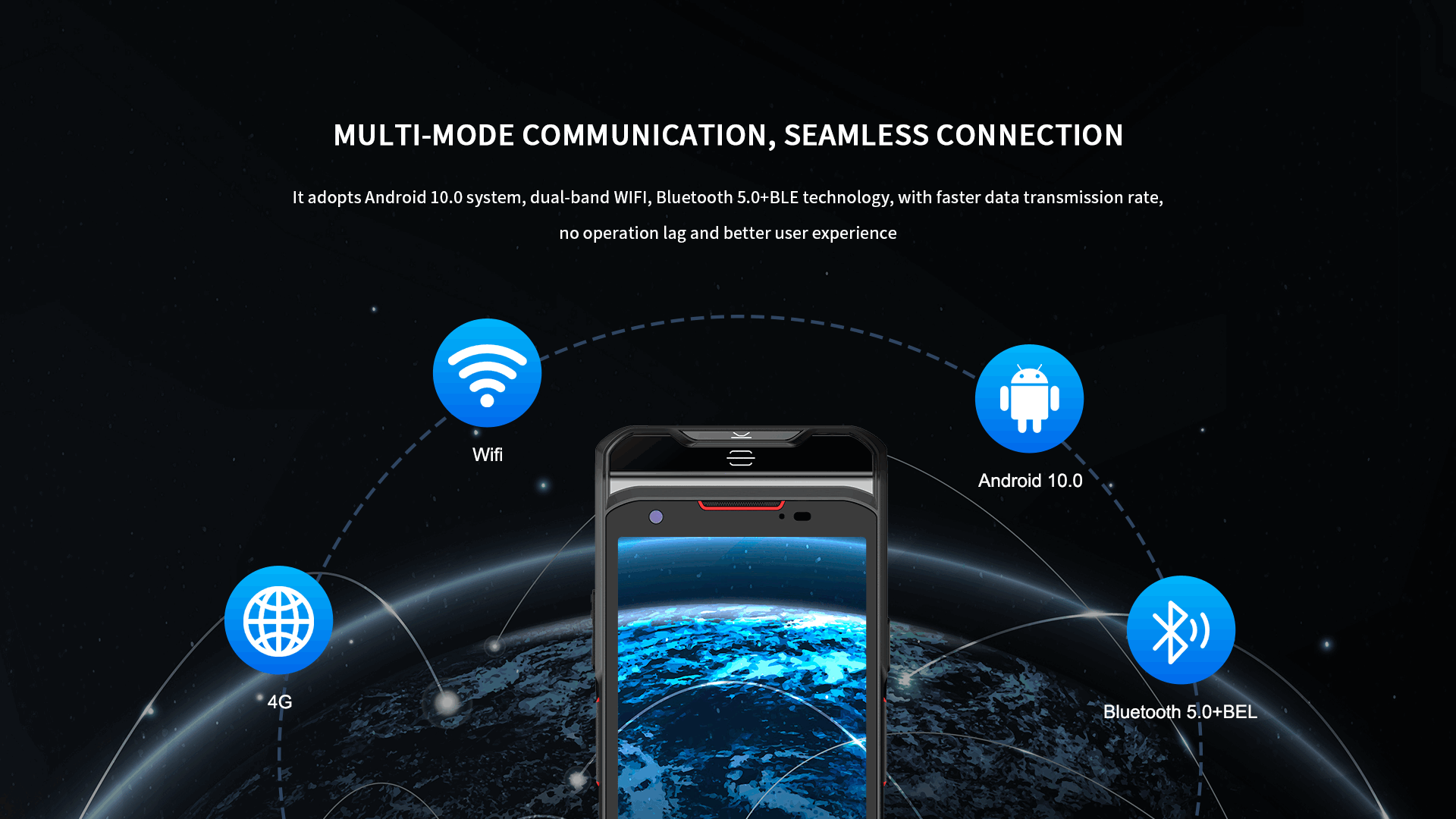

Enjoy Speed

Adopting Android 10.0 system, dual band WIFI, Bluetooth 5.0+BLE technology, the data transmission rate is faster, the operation is not sluggish, and the user experience is better

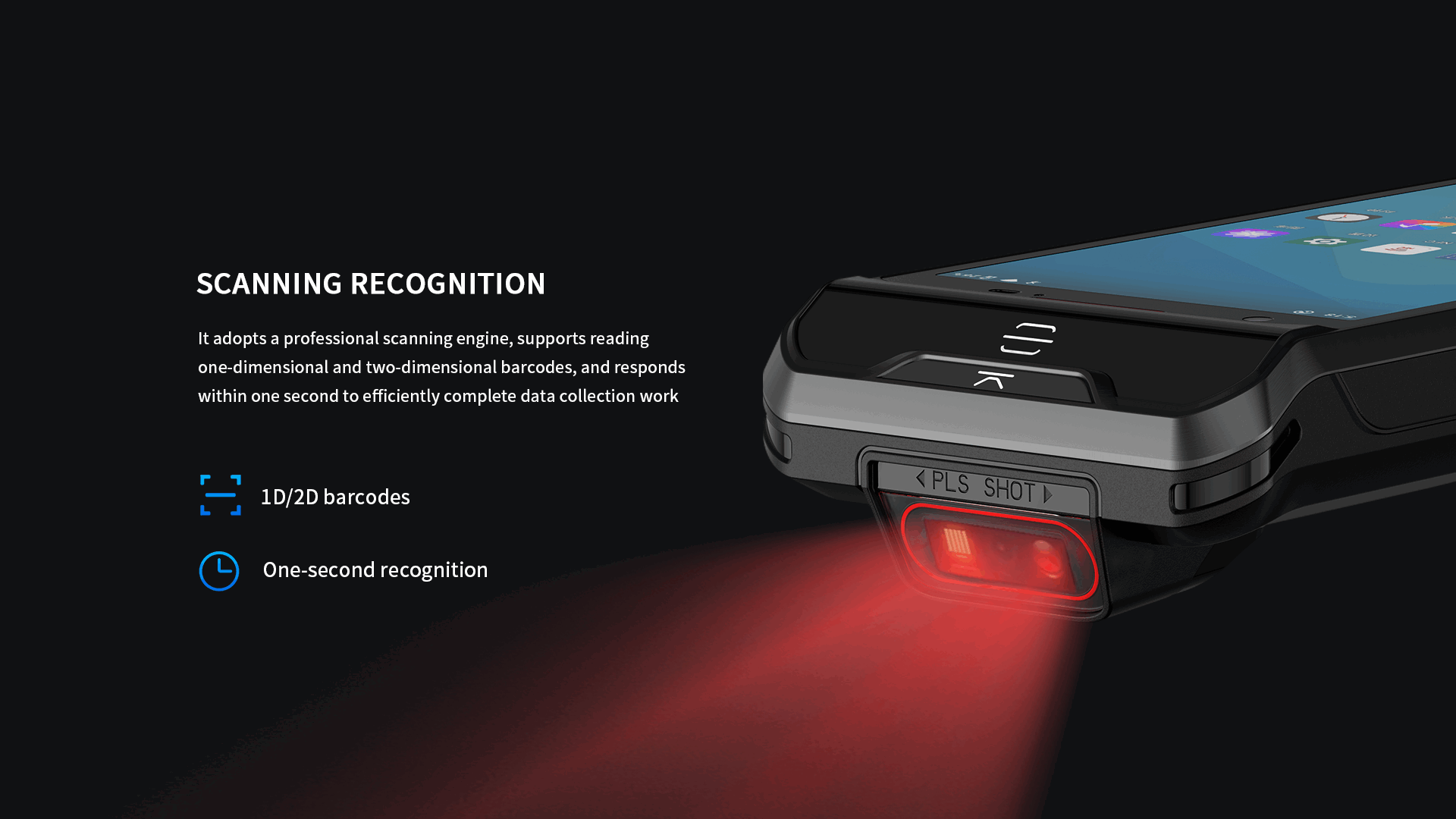

Scan recognition

Adopting a professional scanning engine, supporting the reading of one-dimensional and two-dimensional barcodes

Efficiently complete data collection in one second response

Identification of second-generation certificates

Adopting a dedicated module for ID verification system, it is extremely fast and efficient, expanding into more scenarios

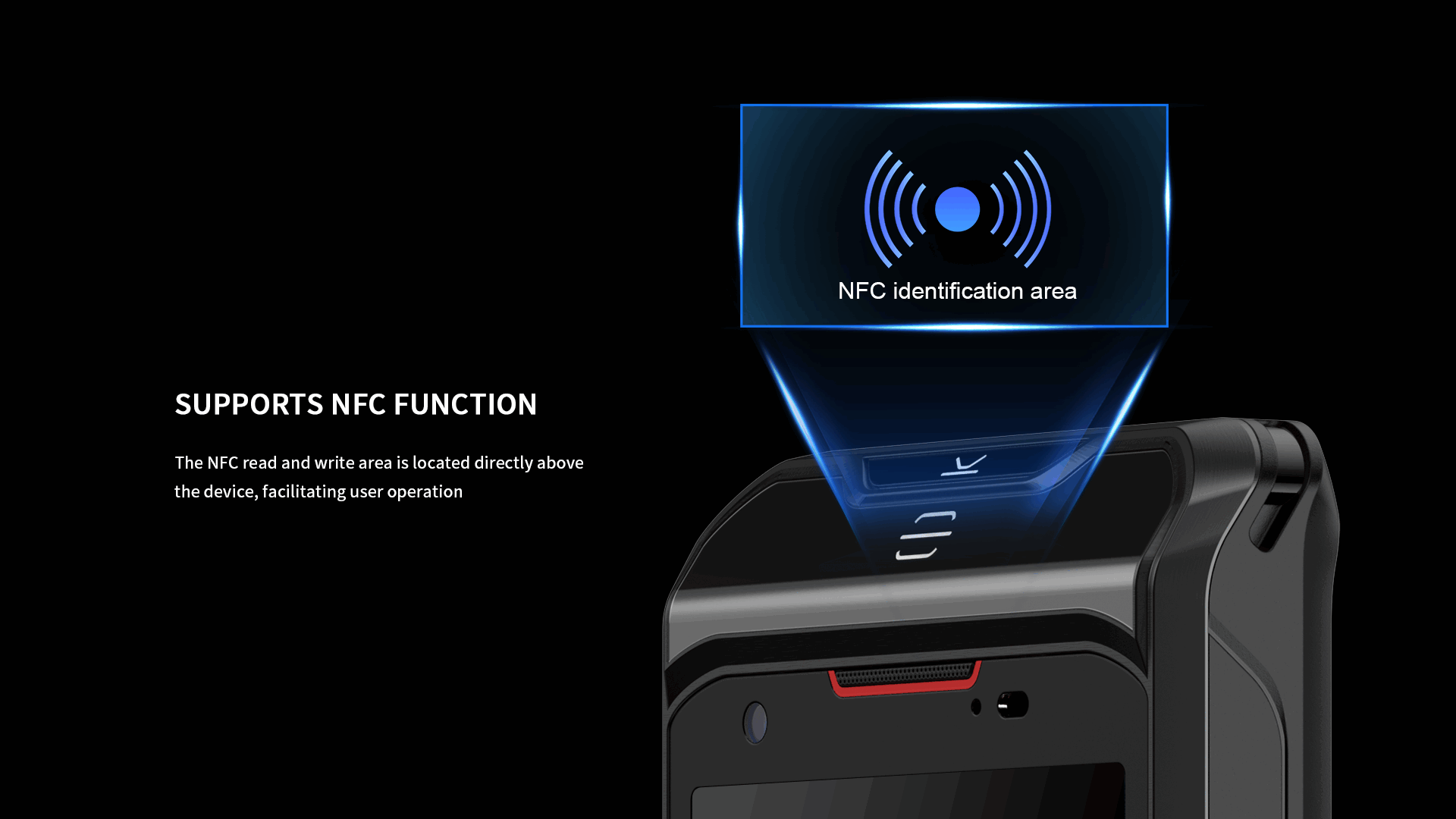

Support NFC function

The NFC read and write area is located directly above the device, making it easy for users to operate

Performance Responsibility to Strong Core

Adopting an 8-core processor, the device operates smoothly and does not get stuck

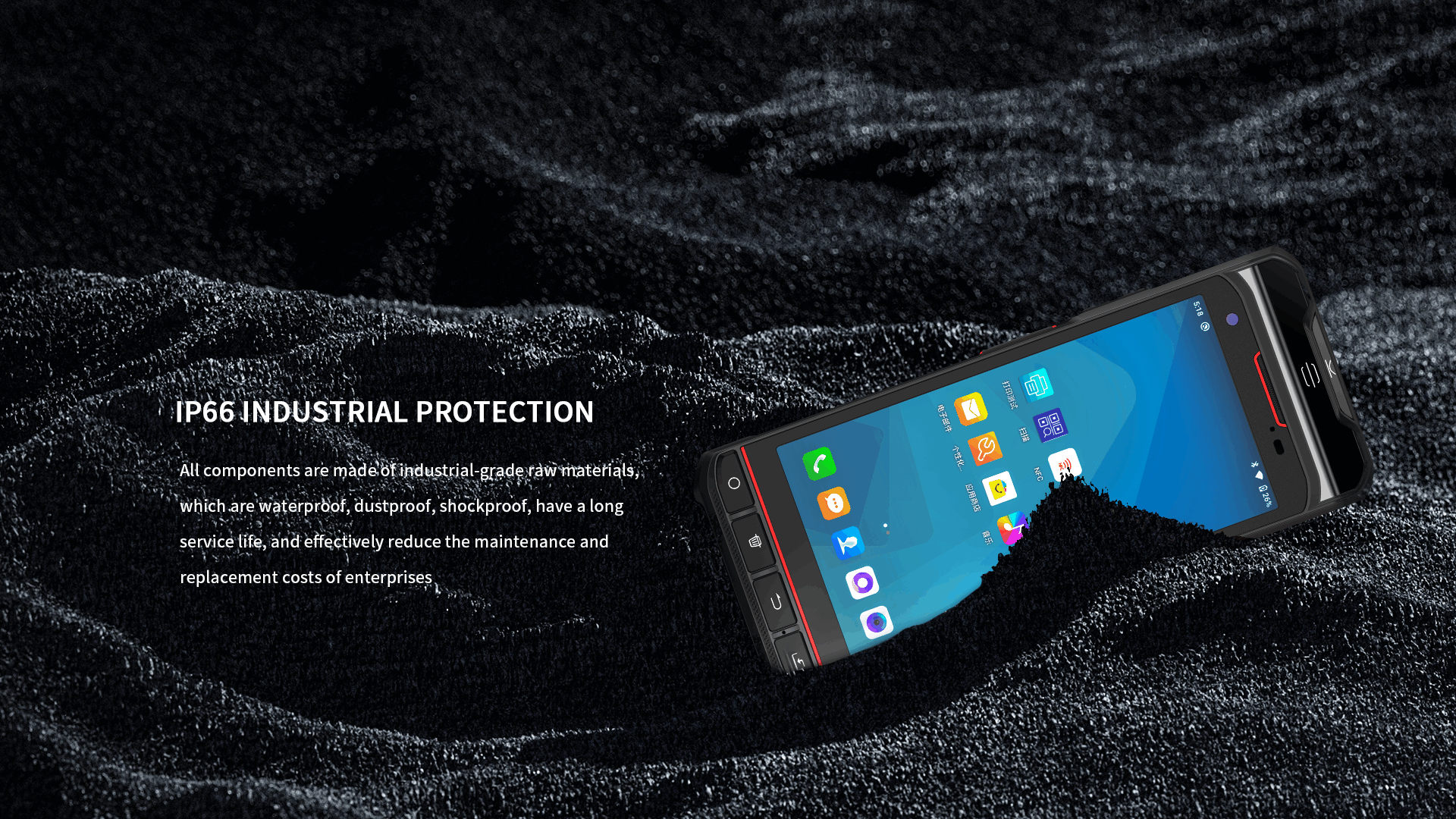

IP66 Industrial Protection

All devices are made of industrial grade raw materials, which are waterproof, dustproof, and resistant to falling

Long service life, effectively reducing maintenance and replacement costs for enterprises

Specifications of the X501

Download

Standard configuration

Operating system

Android 10.0/Android 13.0

CPU

MT6762 Octa core 64-bit 2.0GHz
high-performance processor

RAM+ROM

2GB+16GB
4GB+64GB

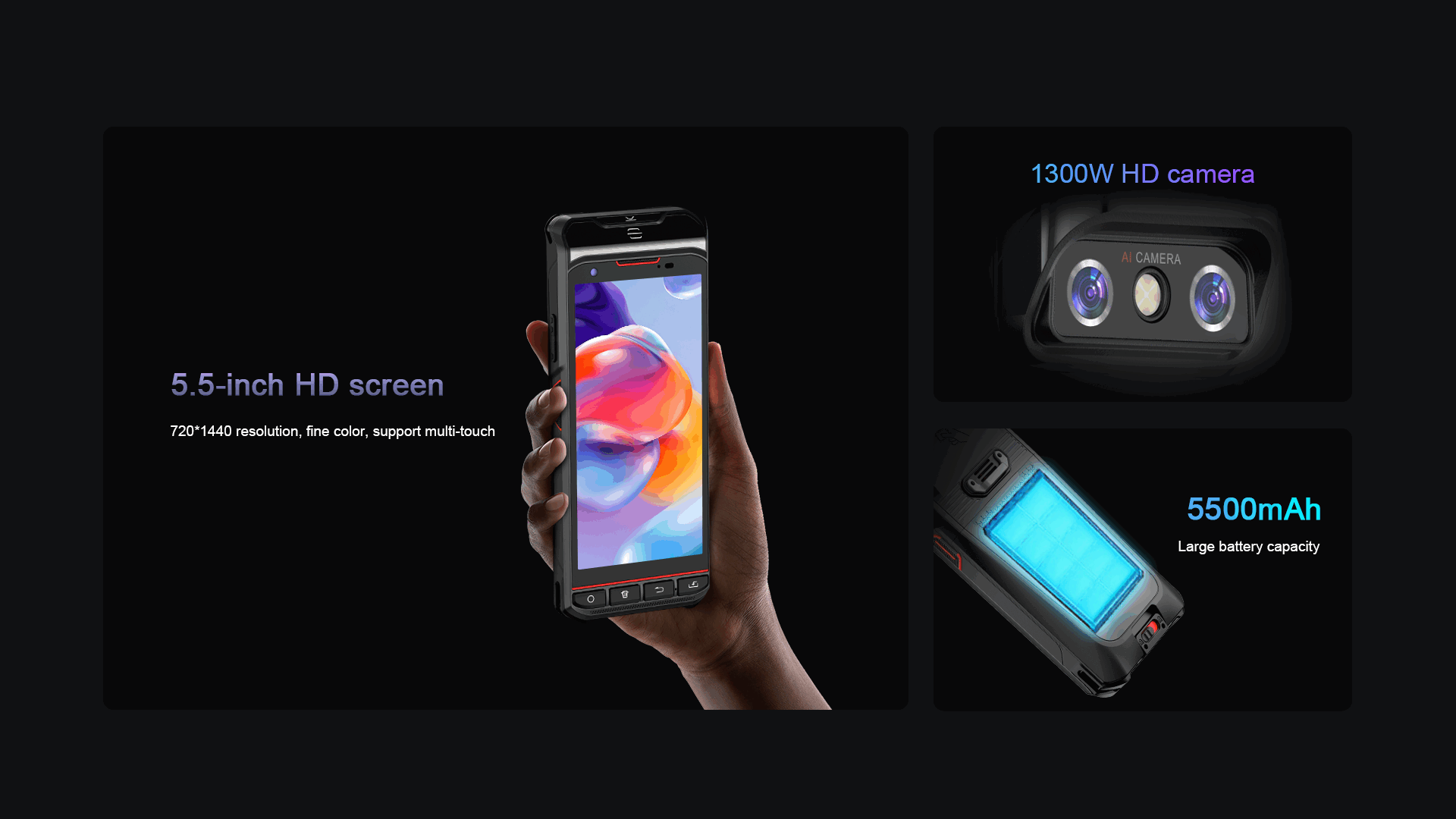

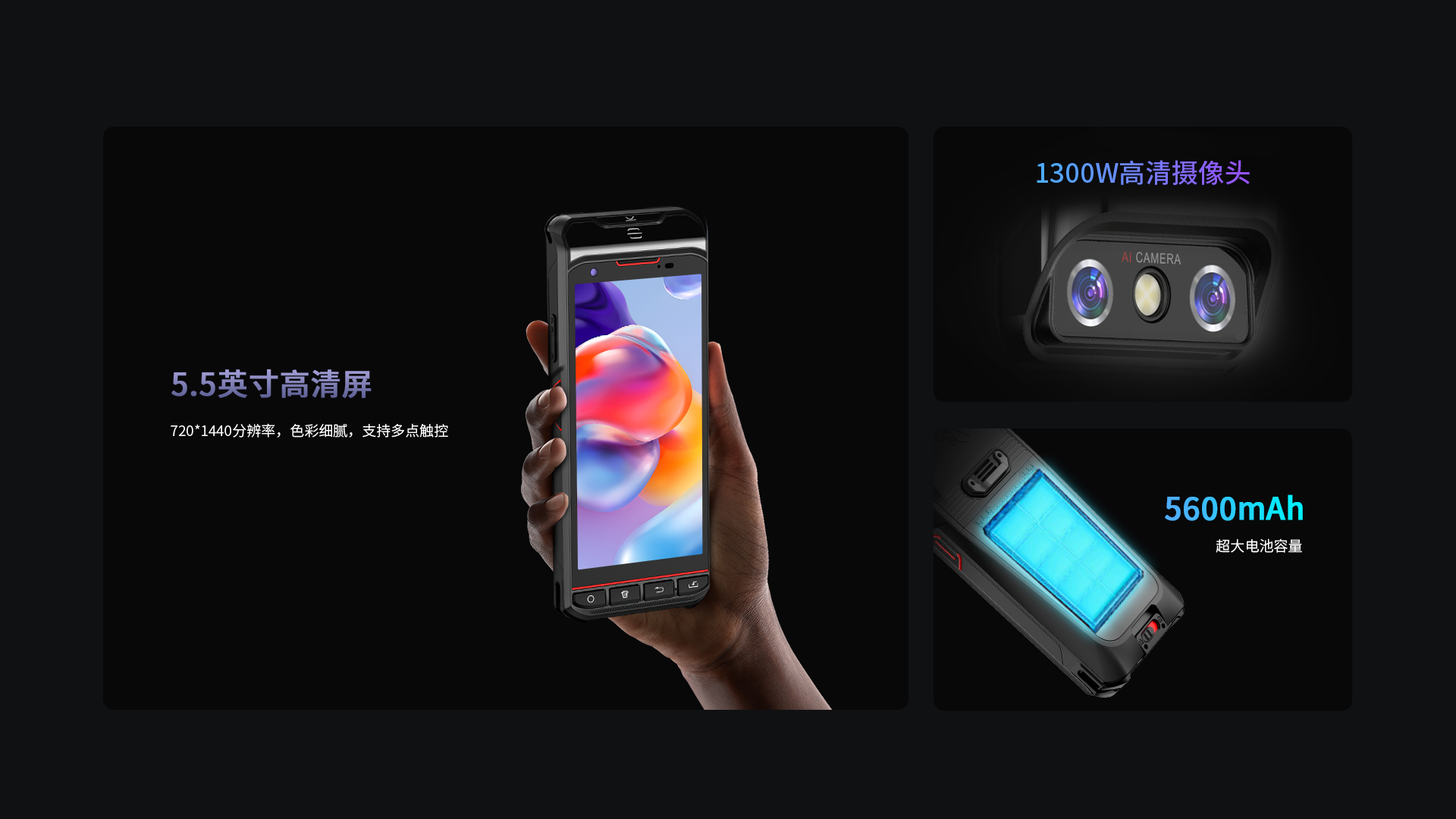

Display screen

5.5-inch,720 x 1440

Mobile Network

4G full network

WIFI

Dual-band 2.4GHz / 5GHz, Support IEEE
802.11ac/a/b/g/n/d/e/h/i/j/k/r/v protocol

Bluetooth

Support Bluetooth 5.0+BLE
Transmission distance 5-10 meters

Interface

Type-C USB x 1, OTG

Dimensions

179mm×74.5mm×23.2mm (the thinnest)

Card Slot

Nano SIM card x 1 , TF card × 1, PSAM×2（Optional）

GNSS

Support Gps, Galileo, Glonass, Beidou

Camera

Rear camera 1300W pixels

User Environment

Operating Temp: -20℃ - 55℃
Storage Temp: -40℃ - 70℃

Battery

3.8V 5500mAh

Sealing

IP66,1.5m drop test

Optional configuration

2D Scanner

Honeywell N5703 N6703,6602

NFC

13.56MHz, Support ISO14443A/B, 15693 agreement

ID Card Identification

13.5MHz±7kHz
The card reading distance is 0~5cm

UHF

840-960MHz(Support multi-country frequency
customization)

125K/134.2K; ISO11784/ISO11785/FDX-Bfrequency
