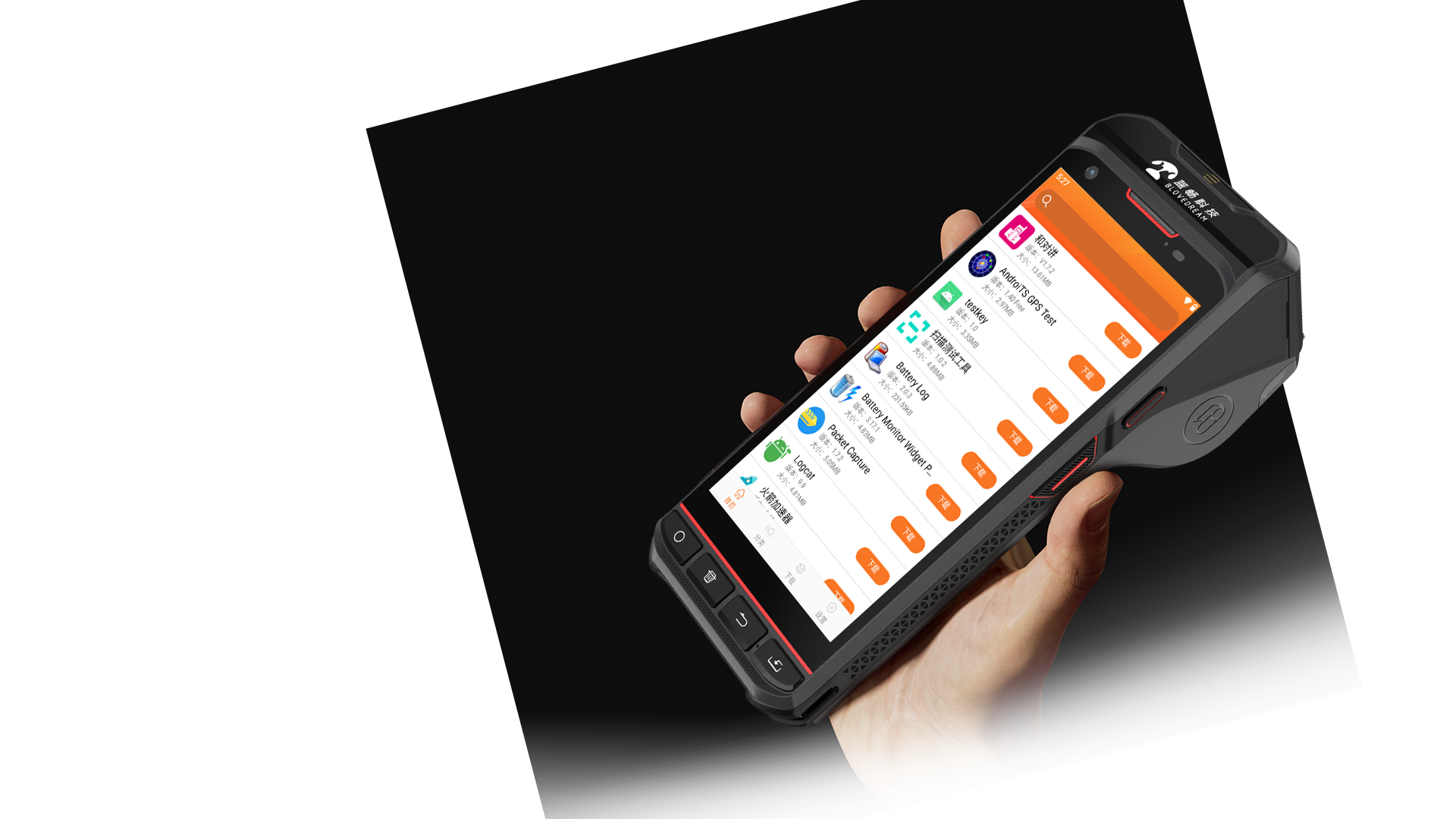

P501 New

print PDA Scanning and printing integrated terminal

A big paper bin is easier

Printing paper bin width 58mm, printing paper diameter 35mm without frequent paper change, reduce equipment loss.

Double print

Support self-adhesive, thermal paper, label printing, such as vouchers, nucleic acid labels, to meet different printing requirements

Scanning code sensitive and fast

Equipped with professional scanning module, support for quick scanning of various barcodes Whether one-dimensional/two-dimensional codes, distorted codes, defaced codes or Screen code millisecond level reading, scan code one step faster

Android 10.0

Stronger compatibility, , easier development, wider application, enterprise-class security and manageability, lower Research and development maintenance costs.

High performance, excellent equipment

Support Antable 10.0 system, equipped with Cortex-A53 octa-core CPU, while configured with dual-core WIFI support Bluetooth 5.0+BLE, smooth and stable network communication, to ensure fast data transmission

Dustproof, waterproof, drop proof

Strict and rigorous production process, the product must meet industrial protection standards, not only dust and waterproof, the body through the test can withstand the impact of 1.2 meters height drop.

Low temperature printing

At a low temperature of -10°C, the printer can also be used normally, maintaining high-speed operation to meet the needs of retailers, catering services, parking fees and other industries

P501 Specifications of the terminal
Download
Standard configuration
Operating system
Android 10.0/13.0
CPU
Octa-core 2.0GHz
RAM+ROM
2GB+16GB
4GB+64GB
Display screen
5.5 inch,720 x 1440
Mobile Network
4G full network
WIFI
Dual-band2.4GHz/5GHz,IEEE 802.11ac/a/b/g/n/d/e/h/i/j/k/r/v protocol
Bluetooth
Bluetooth 5.0+BLE
Interface
Type-C USB x 1 supports OTG
Dimensions
179mm× 75.5mm ×22.5mm (thinnest point) 49.5mm (printing point)
Keypad
Home key, Delete key, Back key,Confirm key
Card slot
Nano SIM Card ×1, TF card ×1, PSAM×2(Optional)
GNSS
GPS,Galileo,Glonass, Beidou
User Environment
Operating Temp: -20°C to55°C
Storage Temp: -40C to 70°C
Camera
Rear camera 13MP
Front camera 2MP
Thermal sticker printer
Paper slot 58mm
Paper diameter 35mm
Sealing
IP54,1.2m drop test
Battery
7.6V 2750mAh
Optional configuration
2D Scanner
Newland E483 Honeywell N5703 N6703 N6602
NFC
13.56MHz, support ISO14443A/B 15693 protocol
ID Card
Distance 0~5cm
Reading time <1.55s
Frequency 13.5MHz±7kHz
